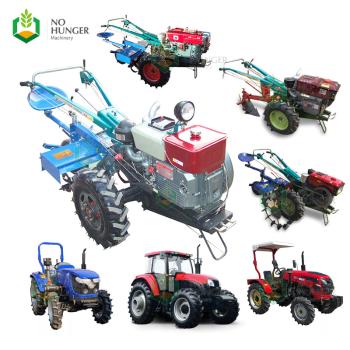

Walking Tractor For Single Plough Of Seat Power Harrow Rotary Tiller

FOB Price :

QTY:

Price

Supply Ability : 1000PCS/ Month

Quantity:

Total Cost :

Henan No Hunger Machinery Co.,Ltd

Verified Supplier

Product Details

Packing Information

Pcs/Carton: 1

Packing Size/Carton:2170*845*1150mm

Packing Vol/Carton: N/A

N.W./Carton: N/A

G.W./Carton: N/A

QTY in 40HQ: N/A

QTY in 40GP: N/A

QTY in 20GP: N/A

No Hunger Machinery Let the world without hunger.

No Hunger Machinery Efforts are being made to increase the coverage of agricultural machinery in more than 100 countries and regions, thereby helping more than one-third of the world's population escape poverty and hunger.

We Promise

1）No shipment after payment, full refund.
2)  Third-party collection to ensure payment security
3)  Refund double difference price if our price is higher
4)  More than 200 pieces in stock ready to ship
5)  3 year Warranty, local after-sales in some areas.
6)  Factory and installation, operation, maintenance videos

Product Display

Contact us to get the price list.

Contact us to get the catalog with prices.

Products Description

Model		Unit	SX-8
Structure weight		kg	270
Overall dimensions (LWH)		mm	2170x 845 x 1150
Type			single cylinder, horizontal
Power			5.88KW/8HP
Traveling speed	Forward	Km/h	I 2-3, II 5-7, III 14-18
	Reverse		R 11-13.5
The wheel base		mm	680 - 740 （Stepless adjustment）
Tire size			6.00-12（ w-tire）
Minimum ground clearance		mm	210
Transmission		/	two belt
The central drivetrain Transmission			cylindrical gear
Drivetrain final drive			single-stage spur gear circle column wheel drive
The steering mode			rodents nested together
Rodents nested together			ring-up
Fuel tank pressure		MPa	0.098
The fuel tank volume		L	9
Engine lubricating oil		L	1-1.4
Gearbox lubricants			3-3.2
The cooling water injection amount			10-11.5
Transmission	Clutch style	/	triple-plate,single-action,standard,dry-friction,long engaging friction
	Gearbox style	/	main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift, (3 + 1)×2 composition formula circular gear wheel column
Type of tractor			dual-purpose for both traction & drive

Imported materials have longer service life and test 24 hours to elongate 3-5MM

Common materials have a short service life, and the test 24 hours elongation 6-9mm

Changchai,a famous diesel engine brand in china.

Other brands, high fuel consumption

The surface is treated with electrophoretic paint, anti-corrosion and anti-rust, with buffering and shock absorption capabilities

Rough surface, poor material performance, easy to corrode and easy to rust, short service life

Product Recommendations

    In order to realize the great dream of freeing the world from hunger, we have spent huge sums of money to build a production plant for agricultural machinery, and set up a special R&D team to develop a series of the most advanced agricultural machinery based on the land and farming habits of countries and regions such as Africa and Southeast Asia. Agricultural machines suitable for these areas. Once the product was launched, it was widely praised and has helped dozens of countries to gradually increase the coverage of agricultural machinery, greatly improving the work efficiency of farmers. We have received so many smiles and solace. But there are still tens of millions of people in the world, especially in Africa, who are hungry.      Our strength is still very small, and our sales channels are not perfect. I hope more people will join us and become our distributors. We can give up all Profits, as soon as possible to make this world without hunger.

p:Whatsapp: 0086 13043713160

FAQ

Q:1.Are you a factory or a trading company?

A:We are a factory mainly produces the agricultural machinery for 11 years.We have our own professional research team to develop products.using "Self-produced Self-marketing" business model, reducing the cost of intermediate links.

Q:2.Where is your factory located ? How can I visit there?

A:Our factory is located in Kaifeng city ,Henan province ,China.1 hour drive from nearest zhengzhou xinzheng airport.

Q:3.How long is your delivery time?

A:All machines can be 10 working day after receive the deposit.

Q:4.What should I do if there is some trouble while using?

A:We will supply English manual book and take a video to show how to resolve the problems or dispatch our engineer to your factory.

Q:5.Can we buy one sample?

A:Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.

Q: 6.How do you control your quality?

A:To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system, and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.

Q:7.What’s the Payment term?

A:30% deposit, 70 % before delivery or Trade Assurance.L/C,T/T,PayPal,and so on.
